Eastwood Versa-Cut 2'X2' CNC Plasma Table for Plasma Cutter Machine and Metal Cutting Torch Machines | Intuitive LCD Touch Screen Display with CNC Controller & USB Port | 10 Gal Waterbed Capacity
Eastwood Versa-Cut 2'X2' CNC Plasma Table for Plasma Cutter Machine and Metal Cutting Torch Machines | Intuitive LCD Touch Screen Display with CNC Controller & USB Port | 10 Gal Waterbed Capacity
Couldn't load pickup availability
The Eastwood Versa-Cut 2' X 2' CNC Plasma Table packs features of a professional CNC Plasma Table in a footprint suited for your home garage. The 24" x 24" cut area is great for custom brackets, sign art, and making generic shapes rapidly. Its lead screw driven design allows ±0.2mm accuracy of movement from the X & Y-axis stepper motors and combines with Automatic Torch Height Control for clean, accurate cuts. The CNC Cut Controller operates fully independent of a PC and enables you to dimension and cut fifty pre-loaded shapes. Additionally, any CAD file post-processed in Autodesk Fusion 360 can be loaded via USB Drive and modified as needed by the CNC Cut Controller. Limit Switches prevent machine limit collision, and the included Waterbed prevents heat soak, warping, and reduces spark & fume hazards. The CNC Cut Controller with Torch Height Control, Limit Switches, and Waterbed, features frequently unavailable, or only offered at an additional cost by competing units focused on home shop use, are all included with the Eastwood Versa-Cut 2’ X 2’ CNC Plasma Table.
This requires a plasma cutter that must be purchased separately and not included with the table.Plasma Table Power Requirements: 120±10% VAC, 50/60 Hz, 5A
Plate Capacity: 24-in. x 36-in. x 0.25-in. thick
Weight Capacity (Includes workpiece and full Waterbed): 200 lbs. (90kg)
Waterbed Fluid Capacity: 10.4 gal (39.4L)
CNC Torch Travel X-Axis: 24.0-in. (610mm)
CNC Torch Travel Y-Axis: 24.0-in. (610mm)
CNC Torch Travel Z-Axis: 1.96-in. (50mm)
Assembled Waterbed Dimensions X-Axis: 27.75-in. (705mm)
Assembled Waterbed Dimensions Y-Axis: 40.06-in. (1018mm)
Assembled Waterbed Dimensions Z-Axis: 2.17-in. (55mm)

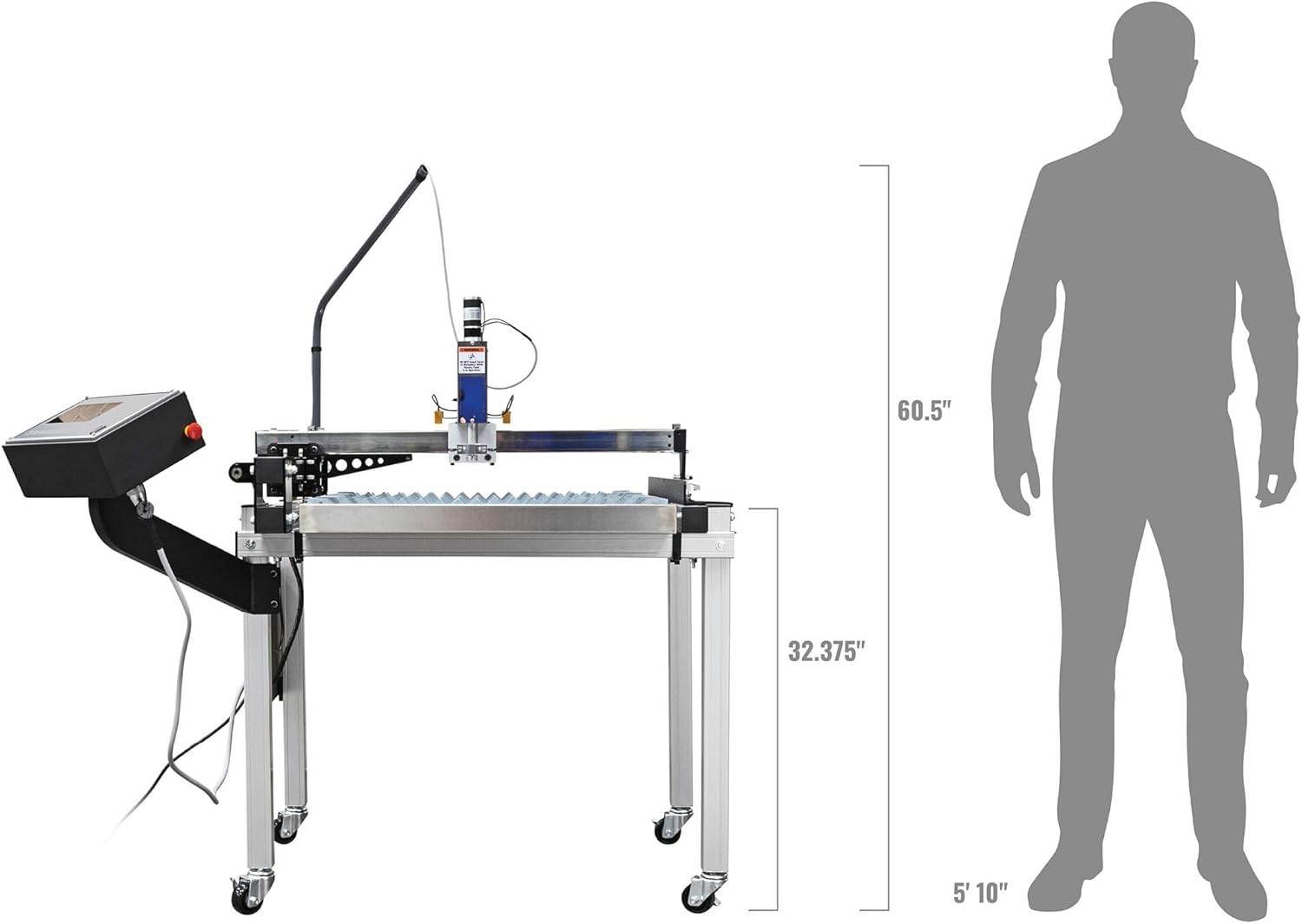

Overall Assembled Dimensions (W x D x H): 52.5-in. (1333mm) x 55.0-in. (1397mm) x 60.5-in. (1536mm)
Overall Assembled Unit Weight: 158.7 lbs. (72kg)
Movement Accuracy: ±0.2mm
Cutting Accuracy: ±0.5mm
Product Features
- 𝐌𝐎𝐃𝐄𝐑𝐍 𝐓𝐄𝐂𝐇𝐍𝐎𝐋𝐎𝐆𝐘 𝐂𝐍𝐂 𝐏𝐋𝐀𝐒𝐌𝐀 𝐓𝐀𝐁𝐋𝐄: Craft your unique metal design arts with unparalleled precision with the Eastwood Versa-Cut 2'X2' CNC Plasma Table, a masterful blend of hobbyist accessibility and professional features. Crafted for those who demand perfection and a user-friendly metal fabrication experience. Designed specifically for use with Eastwood Versa-Cut 40 Plasma Cutter (𝐒𝐨𝐥𝐝 𝐒𝐞𝐩𝐚𝐫𝐚𝐭𝐞𝐥𝐲).
- 𝐔𝐒𝐄𝐑-𝐅𝐑𝐈𝐄𝐍𝐃𝐋𝐘 𝐂𝐍𝐂 𝐂𝐎𝐍𝐓𝐑𝐎𝐋𝐋𝐄𝐑 𝐖𝐈𝐓𝐇 𝐈𝐍𝐓𝐔𝐈𝐓𝐈𝐕𝐄 𝐋𝐂𝐃 𝐃𝐈𝐒𝐏𝐋𝐀𝐘: Our dedicated controller simplifies your metal fabrication operation, eliminating the need for external laptop computers. The 24-in. x 24-in. cut area is great for custom brackets, sign art & making generic shapes. This metal plasma cutting table also accepts custom CNC files through the built-in USB slot offering an intuitive and user-friendly interface for beginners and metal art hobbyists.
- 𝐒𝐄𝐀𝐌𝐋𝐄𝐒𝐒 𝐌𝐄𝐓𝐀𝐋 𝐂𝐔𝐓𝐓𝐈𝐍𝐆 𝐏𝐑𝐄𝐂𝐈𝐒𝐈𝐎𝐍: Experience unparalleled smoothness in metal cutting with the Eastwood Versa Cut 2X2 CNC Plasma Table. Robust stepper motors ensure long life and accurate cut movements, setting the stage for flawless craftsmanship. With a generous and adjustable height torch travel of 24" on the X-Axis and 24" on the Y-Axis, every intricate detail is brought to life with precision, making this set a benchmark for seamless & accurate metal fabrication.
- 𝐄𝐀𝐒𝐓𝐖𝐎𝐎𝐃 𝐐𝐔𝐀𝐋𝐈𝐓𝐘: Eastwood offers solutions which combines our 4,000+ unique products with the know-how to “𝐃𝐨 𝐓𝐡𝐞 𝐉𝐨𝐛 𝐑𝐢𝐠𝐡𝐭”. With an In-house product design, development and testing and a strong track record of high-quality, innovative products. Used and trusted by top builders to beginners and also provides a Lifetime Tech Support.
- 𝐒𝐀𝐓𝐈𝐒𝐅𝐀𝐂𝐓𝐈𝐎𝐍 𝐆𝐔𝐀𝐑𝐀𝐍𝐓𝐄𝐄𝐃: We stand behind our products with confidence. Eastwood Company offers a 1-year limited warranty and a 90-day return warranty that provides extensive protection for your purchase. Our commitment to excellence ensures that your product is covered against defects. If you have any questions, please feel free to contact us, and our support team will provide answers within 24 hours.
Product Information
| Manufacturer | Eastwood |
| Part Number | 68254 |
| Item Weight | 149 pounds |
| Item model number | 68254 |
| Color | Black |
| Material | Steel |
| Power Source | Corded Electric |
| Item Package Quantity | 1 |
| Included Components | (1) 2X2 CNC Plasma Cutting Table |
| Batteries Required? | No |
| ASIN | B0D96D2FQM |
| Best Sellers Rank | |
| Date First Available | July 10, 2024 |
