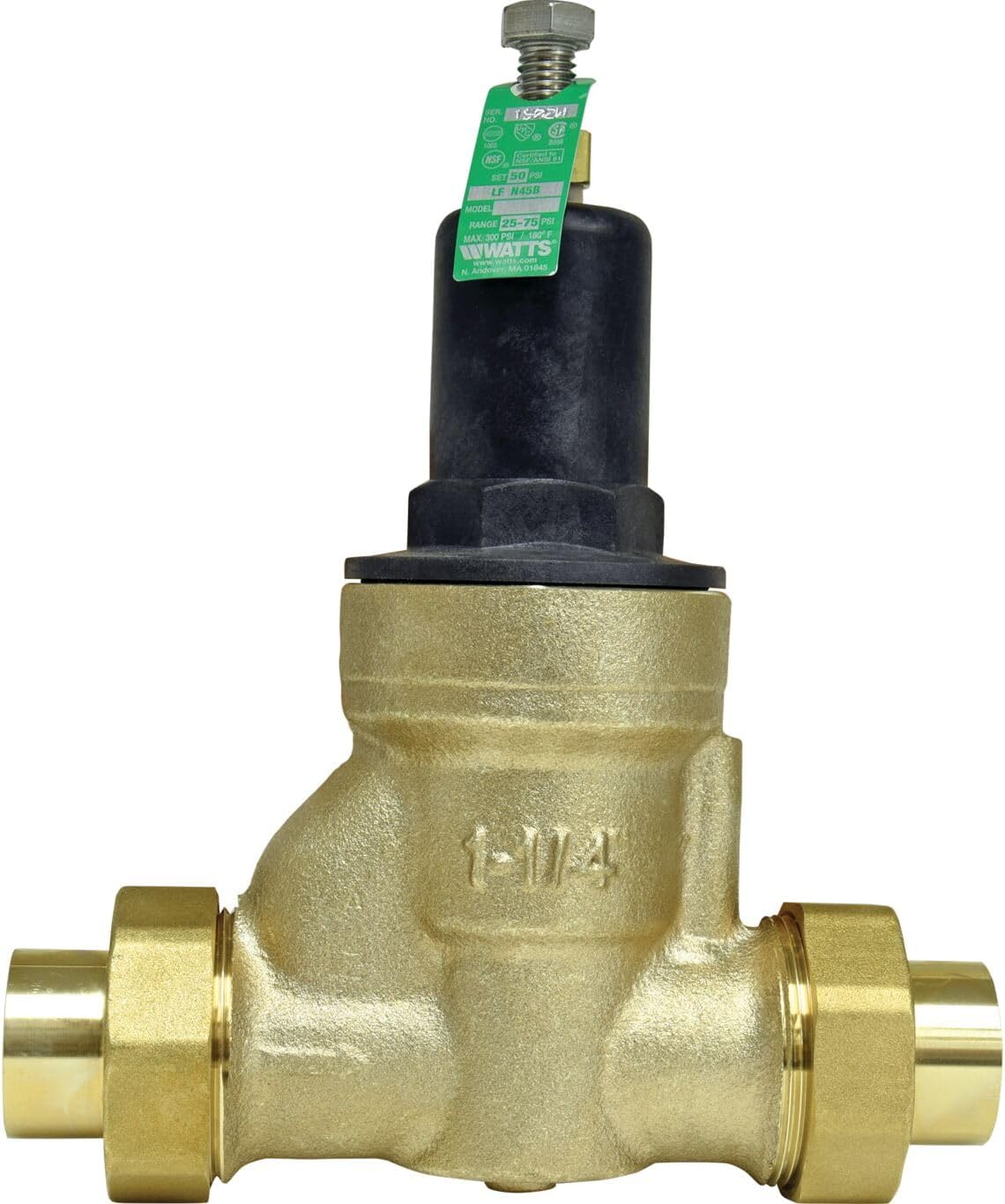

Watts 0009801 Watts 0009801 1 1/4" Copper Silicon Water Pressure Reducing Valve
Watts 0009801 Watts 0009801 1 1/4" Copper Silicon Water Pressure Reducing Valve
Couldn't load pickup availability
This 1 1/4" water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa). Watts 0009801 Features: Double union Adjustable 25-75 PSI Serviceable in line Integral stainless steel strainer removable for cleaning Thermoplastic seat and cage Sealed spring cage for accessible outdoor or waterworks pit installations
Product Overview
- Material: Lead Free Copper Silicon Alloy
- Brand: Watts
- Exterior Finish: Brass
- Inlet Connection Size: 1.25 Inches
- Inlet Connection Type: Solder
- Outlet Connection Type: Solder
- Maximum Operating Pressure: 3E+2 Pound per Square Inch
- Number of Ports: 2
- Outlet Connection Size: 1.25 Inches
- Manufacturer: Watts
Product Information
| Material | Lead Free Copper Silicon Alloy |
| Brand | Watts |
| Exterior Finish | Brass |
| Inlet Connection Size | 1.25 Inches |
| Inlet Connection Type | Solder |
| Outlet Connection Type | Solder |
| Maximum Operating Pressure | 3E+2 Pound per Square Inch |
| Number of Ports | 2 |
| Outlet Connection Size | 1.25 Inches |
| Manufacturer | Watts |
| UPC | 098268428612 |
| Part Number | 0009801 |
| Item Weight | 6.16 pounds |
| Package Dimensions | 12.4 x 9.76 x 5.87 inches |
| Item model number | LFN45B-DU-S 1 1/4 |
| Size | 1 1/4 inches |
| Measurement System | inch |
| Batteries Required? | No |
| ASIN | B093Q9LZYQ |
| Customer Reviews | |
| Best Sellers Rank | |
| Date First Available | March 4, 2021 |
